Garage Shelving and Storage: Four Systems That Earn Their Space

Garage shelving and storage is where most garages are won or lost, and it is almost never a square footage problem. It is a vertical problem. Everything lives on the floor at ankle height while three feet of wall and the whole ceiling sit empty, and the car stays in the driveway. The fix is not one product. It is four decisions: what stands on the floor, what hangs from the ceiling, what hooks onto a rack you already own, and what deserves an actual cabinet. Get those four right and you stop buying storage twice.

Related: How to Find Studs Before You Mount Anything in a Garage →

Quick answer

Match the storage to the load, not to the look. A floor-standing adjustable steel unit handles the heavy, bulky, everyday items. A ceiling-mounted ladder rack takes the long, awkward things that never fit anywhere else. Add-on flat hooks extend an overhead rack you already own so the light and bulky stuff gets up off the floor. A welded steel cabinet set is what you buy when you want the garage to behave like a room instead of a shed. One rule sits above all of it: everything here either stands on a slab or hangs from structure, and structure is the only thing that decides whether it stays up. If you do not know what is behind the drywall or above the ceiling, find out before you drill.

Four useful options

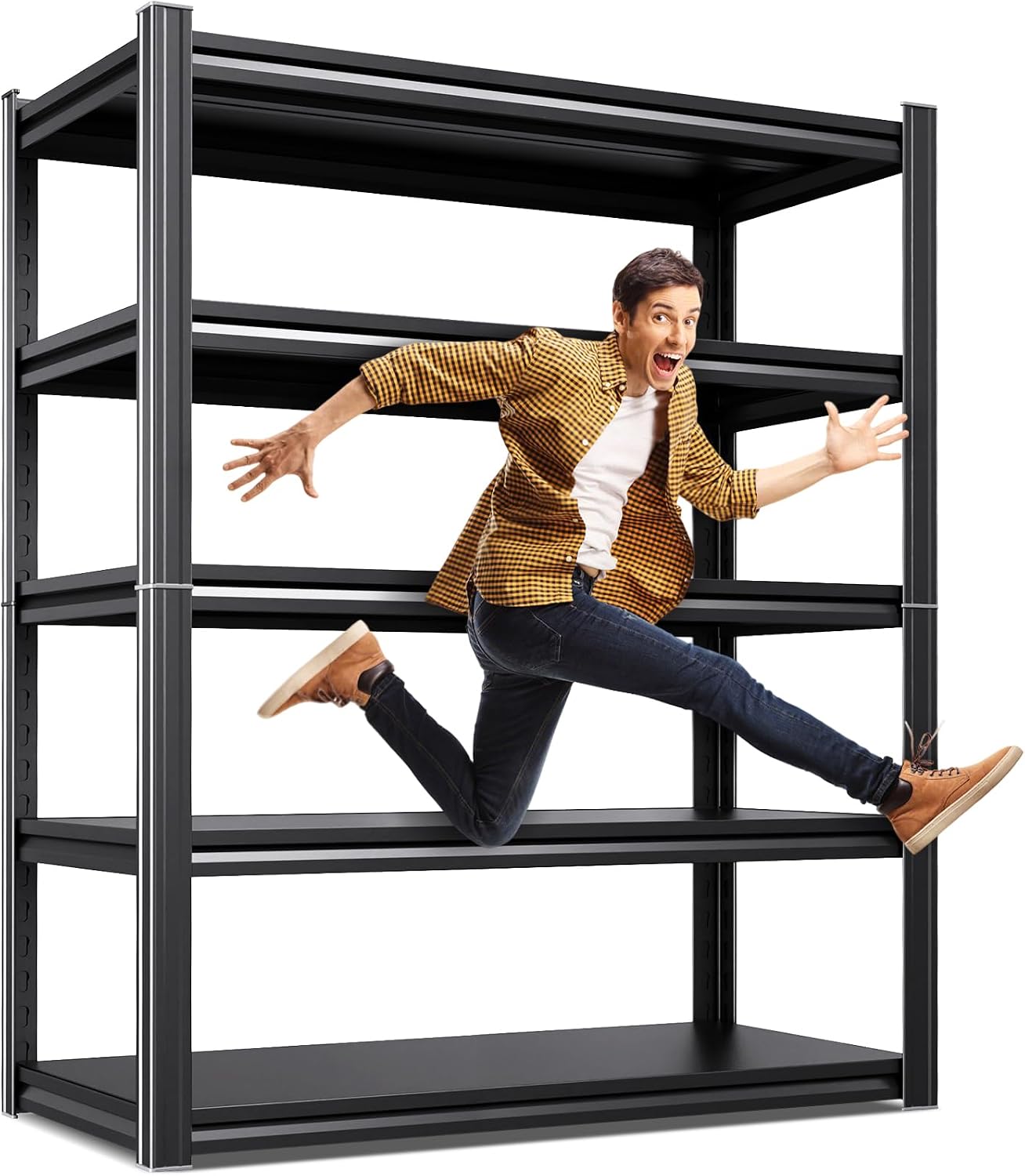

The floor-standing workhorse: 71.2''H /35.4''W Storage Shelves Adjustable Garage Shelving,Heavy Duty Shelving Unit,5T Tall Garage Shelves，Metal Standing Shelf Units,Utility Rack for Kitchen Warehouse Industrial Basement

This is the piece most garages should buy first, because it solves the biggest problem at the lowest cost per square foot of storage. The height is the point. A unit this tall puts five usable levels where one stack of totes used to sit, and the narrow width means it fits along a wall that would otherwise be wasted. Adjustable shelves matter more than people expect: the moment you buy a shelf with fixed spacing, you own a shelf that fits the things the factory imagined and nothing else.

Two trade-offs come with it. First, a standing unit is only as stable as its footing. On a sloped garage slab, level the feet before you load anything, because a tall narrow rack that leans when empty will lean a lot more when it is full. Second, steel shelving in an unconditioned garage sees real temperature swings and humidity. That is normal, and it is a reason to keep damp items off the lowest shelf rather than a reason to avoid steel. If your garage is prone to standing water, raise the base or choose a different wall.

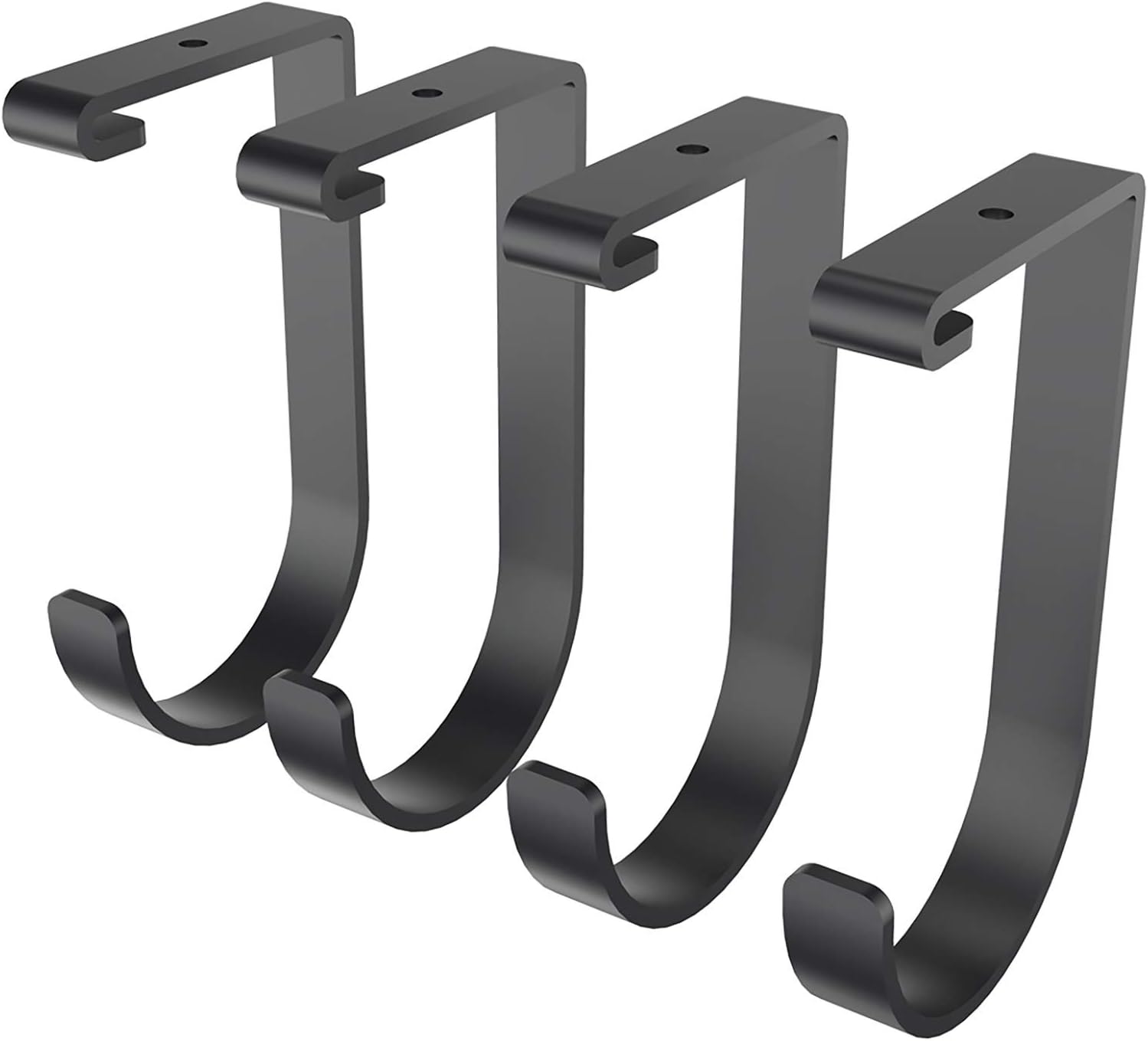

The overhead add-on: FLEXIMOUNTS 4 Pack Add-On Storage Flat Hooks, Black

Hooks are the least glamorous purchase on this list and often the one that changes the garage the most. A ceiling rack gives you a platform, but the platform only helps if the things sitting on it are organized. Hooks let you separate the rake from the hose from the extension cords instead of piling them into a nest you have to untangle every spring.

The honest limitation: an add-on hook is exactly that, an add-on. It depends on the rack above it for every ounce of its capacity. That means the hook is never the weak link worth worrying about. The rack, the fasteners holding the rack, and the joists the fasteners bite into are what determine whether anything overhead stays overhead. If your existing rack was installed with drywall plugs instead of lag screws into joists, adding hooks to it just gives gravity more to work with. Also keep hooks for light and bulky: cords, hoses, ladders that are already dedicated to a rack, long-handled tools. Not chains, not engine blocks, not the box of brake rotors.

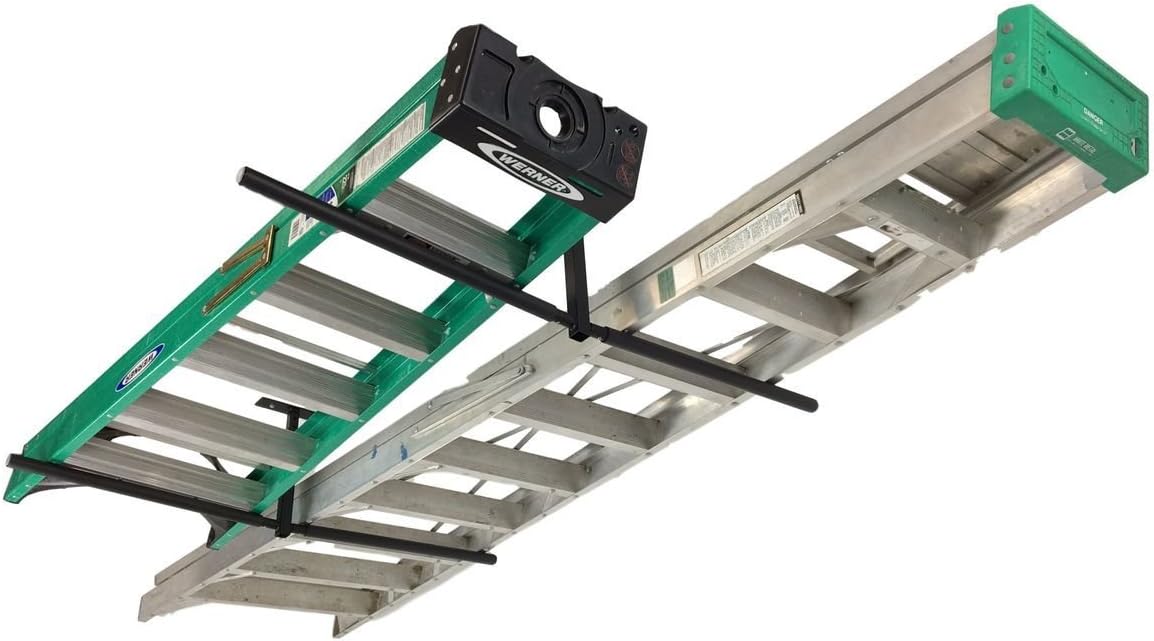

The ladder problem solver: StoreYourBoard Adjustable Overhead Ladder Rack, Garage Organizer Ladder Shelf for Step & Extension Ladders - Storage Racks and Shelving for Garage Organization - Ceiling Mounted - Holds 150 lbs

Ladders are the item that breaks garage organization plans, because they are long, awkward, and heavy enough that leaning them in a corner eventually dents the drywall or blocks a door. Hanging them overhead is the standard answer, and it works, provided the install is honest.

Three things to check before you buy any ceiling rack. First, orientation: the rack's mounting points need to land on ceiling joists or on a properly engineered bridging system, not on drywall and not on the thin metal of a garage door track. Second, overhead clearance: measure from the ceiling down to the lowest point of the loaded rack, then measure your garage door travel and your tallest person. A rack that a ladder clears by an inch is a rack that someone will hit with their head in the dark. Third, weight plus leverage: a ladder is a long lever, and how it sits in the rack changes the load on the fasteners far more than the number on the box suggests. The listed 150 lbs is a starting point for your math, not a promise about your ceiling.

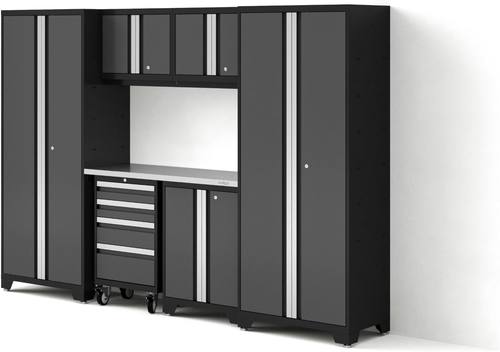

The finished-garage cabinet set: NewAge Products Gray Bold Series 7PC Garage Cabinetry Set · 24-Gauge Steel · Fully Welded · 108" W x 18" D x 76.75" H, 50420

This is the different purchase. Shelving stores things you want to see. Cabinets store things you want closed, and they change how the room reads when you pull the car in. Fully welded steel is the detail worth paying attention to, because it is the difference between a cabinet that stays square after a decade of humidity cycles and a flat-pack box that racks out of alignment the first time you overload a shelf. The 18 inch depth is also deliberate: shallow enough that a car door still opens in a two-car garage, deep enough for paint, chemicals, and tools.

The trade-offs are cost and commitment. A cabinet set at this width takes a wall run you cannot easily rearrange later, and it does not hold anything the shelving unit cannot hold. What it buys you is durability of appearance, closed storage, and a spouse who stops describing the garage as the mess. If your budget only stretches one direction, floor shelving and a ceiling rack move more stuff. Cabinets make the result feel finished.

Prices and availability may change. Product images, names, and retailer links must be matched by verified ASIN. Do not state a current price, rating, stock status, or measured result without current evidence.

How garage weight ratings are actually written

A weight rating is not a magic number that travels with a shelf. It is the result of a test the manufacturer ran under conditions you almost certainly do not have: new fasteners, perfect mounting, ideal substrate, even load, room temperature, no vibration. Change any of those and the number you read is a starting point rather than a ceiling.

The part people miss is where the rating gets measured. A shelf rated at 800 lbs might be rated at the bracket, meaning the shelf deck itself is the limiting factor. A ceiling rack rated at 150 lbs might be rated with the load centered, not hanging off one end. And almost no rating accounts for the garage's own habits: a Kansas City garage swings from below freezing in January to over 100 degrees in July, and that cycle works on fasteners, powder coat, and wood alike. Steel expands and contracts, wood dries and shrinks, and a fastener that was snug in October can be a quarter turn loose by April.

So read the rating, then read what it is attached to, then read how you plan to load it. The number is the beginning of the conversation, not the end.

Where the load actually goes: studs, joists, and the load path

Every storage decision in a garage comes down to a load path. The load starts at the object, moves into the shelf or hook, moves into the bracket, moves into the fastener, and then either finds wood or finds nothing.

On a wall, that means studs. Garage walls are typically framed at 16 or 24 inches on center, and a stud finder plus a pencil mark is the difference between a wall panel that holds and one that pulls out with a chunk of drywall attached. Toggle anchors and plastic plugs have their place for light loads, but a hook holding a 40 lb hose reel is not that place. On a ceiling, the same logic applies to joists, with the added complication that a garage ceiling often hides a garage door opener, wiring, and sometimes ductwork.

Then there is the slab. A standing shelf on a sloped or cracked floor concentrates its load on one or two feet unless you shim and level it. That is not a product flaw, it is a garage floor being a garage floor.

1. Identify the wall or ceiling you intend to use and confirm what is behind it.
2. Locate studs or joists and mark them, then verify with a small pilot hole if you are unsure.
3. Match the fastener to the substrate, lag screws or structural screws into wood, never a drywall plug for a real load.
4. Dry-fit the rack or shelf, check for door travel, opener rails, and head clearance before you commit.
5. Load it gradually and check the fasteners again after a season of temperature swings.

Practical guidance before you buy anything

• Measure the wall run, the ceiling height, and the depth a car door needs, then subtract before you shop.
• Weigh your heaviest realistic item and plan for that, not for the average of everything you own.
• Keep overhead storage for light and bulky items; keep dense, heavy items low and on the floor.
• Level standing units on the slab and shim the feet, because a leaning rack gets worse under load.
• Recheck fasteners after the first winter, since wood movement loosens things that were tight in summer.

Which option should you choose?

Choose the 71.2''H /35.4''W Storage Shelves Adjustable Garage Shelving,Heavy Duty Shelving Unit,5T Tall Garage Shelves，Metal Standing Shelf Units,Utility Rack for Kitchen Warehouse Industrial Basement when the bulk of your clutter is on the floor and you want the most storage for the least money, especially along a narrow wall. Choose the FLEXIMOUNTS 4 Pack Add-On Storage Flat Hooks, Black when you already have an overhead rack and just need to separate cords, hoses, and long-handled tools instead of stacking them. Choose the StoreYourBoard Adjustable Overhead Ladder Rack, Garage Organizer Ladder Shelf for Step & Extension Ladders - Storage Racks and Shelving for Garage Organization - Ceiling Mounted - Holds 150 lbs when ladders are the thing blocking your walls and you have verified ceiling joists above the parking area. Choose the NewAge Products Gray Bold Series 7PC Garage Cabinetry Set · 24-Gauge Steel · Fully Welded · 108" W x 18" D x 76.75" H, 50420 when the garage needs to read as a finished room and you want closed storage that holds its shape.

None of these are interchangeable, and none of them fix a mounting problem. A 150 lb ceiling rack on drywall anchors is a hazard, and a welded cabinet set on an unlevel slab will show every gap. The order that works for most people is structure first, floor storage second, overhead third, and cabinets last once you know what is left.

The bottom line

Garage shelving and storage rewards planning more than spending. Confirm your studs and joists, level what stands on the slab, keep heavy items low, and send only light and bulky items overhead. Do that and any of these four earns its space. Skip it and the most expensive piece in the garage becomes the one that ends up on the floor.
